Small Size Three Axis Gyroscope Rugged Fiber Optic Gyro Sensor 80*80*48mm JT3F80
| Place of Origin | china |
|---|---|
| Brand Name | JTZG |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Delivery Time | According to customer's requirement |
| Payment Terms | Negotiable |
| Supply Ability | Strong production capacity |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Three Axis Gyroscope | Technology | Fiber Optic Gyroscope |
|---|---|---|---|
| Grade | Industrial | Applications | Aerospace, Defense, Navigation, Robotics |
| Warranty | 1 Year | Customized Support | OEM, ODM |
| Highlight | Small Size Three Axis Gyroscope,Three Axis Gyroscope Rugged,Fiber Optic Gyro Sensor 80*80*48mm |
||
Product Description

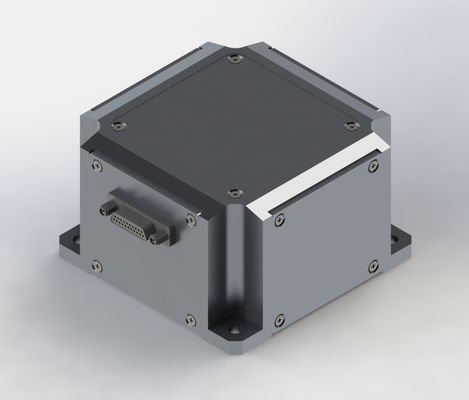

JT3F80 Fiber Optic Gyroscope
The JT3F80 fiber optic gyroscope is a three-axis angular velocity sensor with wide range, fast response, high sensitivity, small size, high precision, ruggedness and reliability, and immunity to electromagnetic influence.
|
Axial |
3- axis |
|
Range ( °/s) |
± 1000 |
|
Bias stability ( °/h) , 10s |
＜ 0.3 (typical value 0.2 ) |
|
Zero bias repeatability ( °/h) , 10s |
＜ 0.3 (typical value 0.2 ) |
|
Random walk coefficient ( °/√h) |
＜ 0.03 |
|
Scale factor non-linearity ( ppm ) |
＜ 100 |
|
Scale factor asymmetry ( ppm ) |
＜ 100 |
|
Scale factor repeatability ( ppm ) |
＜ 100 |
|
Startup time ( s ) |
≤5 |
|
Magnetic shielding |
The optical fiber ring of key sensitive devices has magnetic shielding |
|
Power supply ( V ) |
Single 5V power supply |
|
Power consumption ( W ) |
≤5 |
|
Dimensions ( mm ) |
80 * 80 * 48 |
|
Weight ( g ) |
≤ 600 |
|
Output method |
RS-422 |
|
Operating temperature (°C) |
-40 ℃ ~ + 60 ℃ |
|
Storage temperature (℃) |
-55 ℃ ~+8 5 ℃ |
|
Communication interface |
DB9, customizable |
JT3F80 installation dimension drawing
