High Precision Well Logging Equipment Customized Downhole Logging Tools Industrial JT3Z32B
| Place of Origin | china |
|---|---|
| Brand Name | JTZG |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Delivery Time | According to customer's requirement |
| Payment Terms | Negotiable |
| Supply Ability | Strong production capacity |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Well Logging Equipment | Grade | Industrial |
|---|---|---|---|
| Applications | Aerospace, Defense, Navigation, Robotics | Customized Support | OEM, ODM |
| Highlight | High Precision Well Logging Equipment,Well Logging Equipment Customized,Downhole Logging Tools Industrial |
||
Product Description

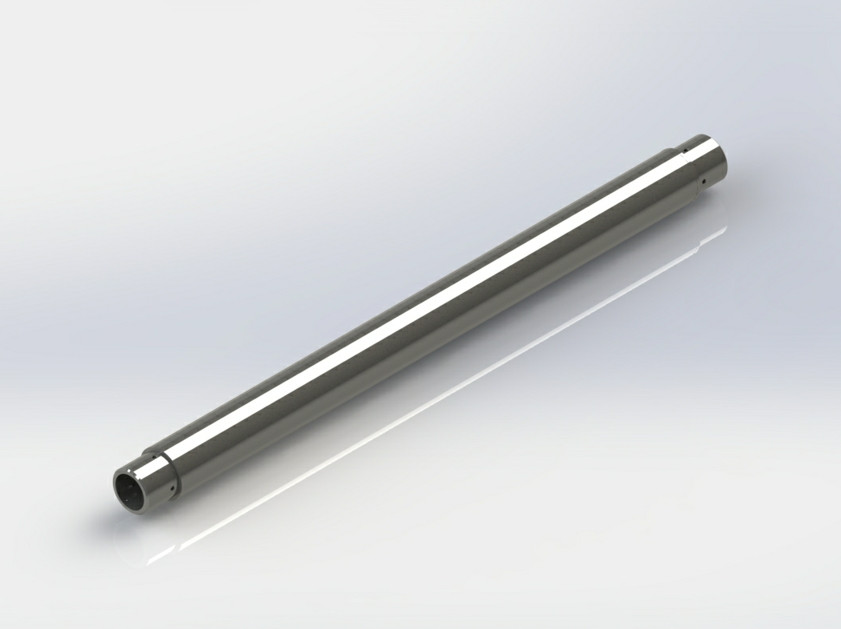

JT3Z32B three-axis fiber optic gyroscope
The JT3Z32B three-axis fiber optic gyroscope is a three-axis angular velocity sensor designed for inclinometers with a wide range, fast response, high sensitivity, small size, high precision, ruggedness and reliability, light weight, and immunity to electromagnetic influence.
|
Gyro Level |
standard |
|
Axial |
X/Y/Z three-axis |
|
Range ( °/s) |
± 3 00 |
|
Bias stability ( °/h) , 10s |
＜ 0.2 |
|
Zero bias repeatability ( °/h) , 10s |
＜ 0.2 |
|
Random walk coefficient ( °/√h) |
＜ 0.0 5 |
|
Scale factor non-linearity ( ppm ) |
＜15 0 |
|
Scale factor asymmetry ( ppm ) |
＜15 0 |
|
Scale factor repeatability ( ppm ) |
＜15 0 |
|
Frequency bandwidth ( Hz ) |
≥ 1 00 (200,400) |
|
Startup time ( s ) |
≤5 |
|
Magnetic shielding |
The optical fiber ring of key sensitive devices has magnetic shielding |
|
Power supply ( V ) |
±5V power supply |
|
Power consumption ( W ) |
≤5 |
|
Dimensions ( mm ) |
Φ 32*450±1 |
|
Weight ( kg ) |
< 1.0 |
|
Output method |
RS-422 |
|
Operating temperature (°C) |
0℃ ~+70 ℃ |
|
-20℃ ~+70 ℃ |
|
|
Storage temperature (℃) |
-55 ℃ ~+8 5 ℃ |
|
Communication interface |
J30 J -9-TJ , customizable |
JT3Z32 B Dimensions
