High Sensitivity Single Axis Gyroscope Customized Micro Gyroscope Sensor Rugged JT50
| Place of Origin | china |
|---|---|
| Brand Name | JTZG |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Delivery Time | According to customer's requirement |
| Payment Terms | Negotiable |
| Supply Ability | Strong production capacity |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Axis Gyroscope | Technology | Fiber Optic Gyroscope |
|---|---|---|---|
| Grade | Industrial | Applications | Aerospace, Defense, Navigation, Robotics |
| Warranty | 1 Year | Customized Support | OEM, ODM |
| Highlight | High Sensitivity Single Axis Gyroscope,Single Axis Gyroscope Customized,Micro Gyroscope Sensor Rugged |
||
Product Description

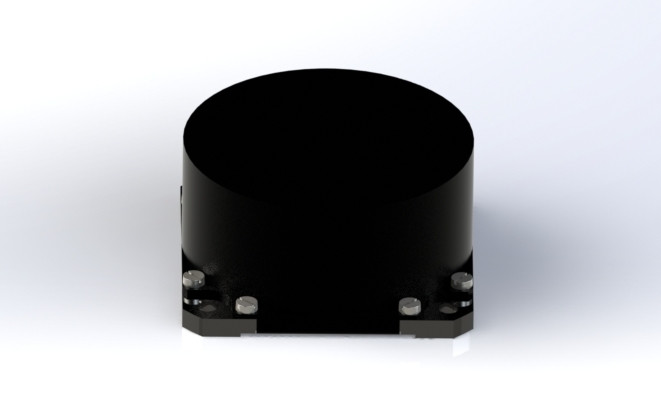

JT50 Fiber Optic Gyroscope
The JT50 Fiber Optic Gyroscope is an advanced, high-performance angular velocity sensor designed for precision-critical applications. It offers a broad measurement range and exceptional sensitivity, enabling rapid response and highly accurate angular velocity measurements in real-time.
This gyroscope excels in compactness and lightweight design, making it ideal for integration into space-constrained systems without compromising performance. With its high precision and robust construction, the JT50 guarantees reliable operation even in harsh environments, ensuring consistent performance under challenging conditions.
Engineered for ruggedness and durability, the JT50 provides unparalleled reliability for applications across aerospace, defense, industrial, and scientific fields, where precision and resilience are paramount.
|
Gyro Level |
A |
B |
C |
|
Range ( °/s) |
± 800 |
||
|
Bias stability ( °/h) , 10s |
＜0.3 (typical value 0.07) |
＜0.2 (typical value 0.15) |
＜0.1 (typical value 0.08) |
|
Zero bias repeatability ( °/h) , 10s |
＜0.3 |
＜0.2 |
＜0.1 |
|
Random walk coefficient ( °/√h) |
＜0.03 |
＜0.02 |
＜0.01 |
|
Scale factor non-linearity ( ppm ) |
＜150 |
＜100 |
＜50 |
|
Scale factor asymmetry ( ppm ) |
＜150 |
＜100 |
＜50 |
|
Scale factor repeatability (ppm) |
＜150 |
＜100 |
＜50 |
|
Frequency bandwidth ( Hz ) |
≥ 100 |
||
|
Startup time ( s ) |
≤5 |
||
|
Magnetic shielding |
The optical fiber ring of key sensitive devices has magnetic shielding |
||
|
Power supply ( V ) |
5V power supply |
||
|
Power consumption ( W ) |
≤3 |
||
|
Dimensions ( mm ) |
50*50*25 |
||
|
Weight ( kg ) |
100±10 |
||
|
Output method |
RS-422 |
||
|
Operating temperature (°C) |
-20 ℃ ~ + 60 ℃ |
||
|
-40 ℃ ~ + 60 ℃ |
|||
|
Storage temperature (℃) |
-55 ℃ ~+8 5 ℃ |
||
|
Communication interface |
DB9, customizable |
||
JT50 installation dimension drawing
