Single Axis Fiber Gyroscope Compact Size High Accuracy Gyroscope High Sensitivity JT60
| Place of Origin | china |
|---|---|
| Brand Name | JTZG |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Delivery Time | According to customer's requirement |
| Payment Terms | Negotiable |
| Supply Ability | Strong production capacity |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Gyroscope | Technology | Fiber Optic Gyroscope |
|---|---|---|---|
| Grade | Industrial | Applications | Aerospace, Defense, Navigation, Robotics |
| Warranty | 1 Year | Customized Support | OEM, ODM |
| Highlight | Single Axis Fiber Gyroscope,Fiber Gyroscope Compact Size,High Accuracy Gyroscope High Sensitivity |
||
Product Description

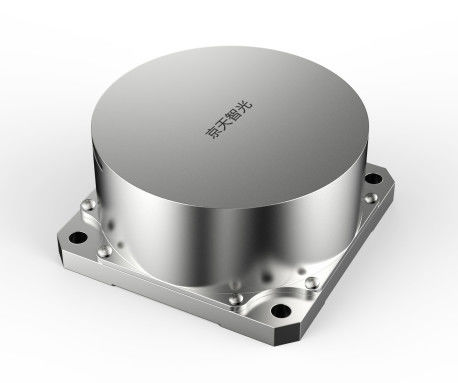

JT60 Fiber Optic Gyroscope
The JT60 fiber optic gyroscope is an angular velocity sensor with wide range, fast response, high sensitivity, small size, high precision, ruggedness and reliability, small size, light weight, and immunity to electromagnetic influence.
|
Gyro Level |
standard |
A |
B |
C |
|
Range ( °/s) |
± 300 |
|||
|
Bias stability ( °/h) , 10s |
＜ 0.2 (typical value 0.12) |
＜ 0.2 (typical value 0.07) |
＜ 0.1 (typical value 0.07) |
＜ 0.05(typical value 0.07) |
|
Zero bias repeatability ( °/h) , 10s |
＜0.2 |
＜0.2 |
＜0.1 |
＜0.05 |
|
Random walk coefficient ( °/√h) |
＜0.02 |
＜0.02 |
＜0.01 |
＜0.005 |
|
Scale factor non-linearity ( ppm ) |
＜50 |
＜50 |
＜50 |
＜50 |
|
Scale factor asymmetry ( ppm ) |
＜50 |
＜50 |
＜50 |
＜50 |
|
Scale factor repeatability (ppm) |
＜50 |
＜50 |
＜50 |
＜50 |
|
Frequency bandwidth ( Hz ) |
≥ 100 |
|||
|
Startup time ( s ) |
≤5 |
|||
|
Magnetic shielding |
The optical fiber ring of key sensitive devices has magnetic shielding |
|||
|
Power supply ( V ) |
±5V power supply |
|||
|
Power consumption ( W ) |
≤5 |
|||
|
Dimensions ( mm ) |
60*60* 28 |
|||
|
Weight ( g ) |
160±10 |
|||
|
Output method |
RS-422 |
|||
|
Operating temperature (°C) |
-20 ℃ ~ + 60 ℃ |
|||
|
-40 ℃ ~ + 60 ℃ |
||||
|
Storage temperature (℃) |
-55 ℃ ~+ 85 ℃ |
|||
|
Communication interface |
DB9, J30 J - 15 -TJ , customizable |
|||
JT60 installation dimension drawing
