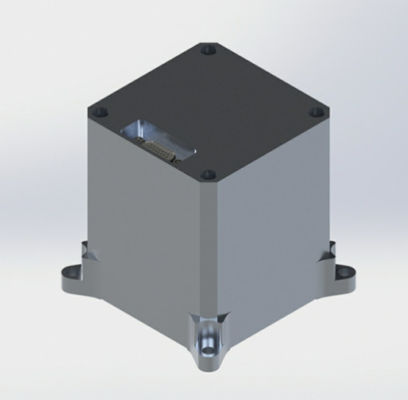

RS422 IMU Inertial Measurement Unit 60×60×70mm Inertial Navigation System OEM JT-IMU60A
| Place of Origin | china |
|---|---|
| Brand Name | JTZG |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Delivery Time | According to customer's requirement |
| Payment Terms | Negotiable |
| Supply Ability | Strong production capacity |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | IMU Inertial Measurement Unit | Technology | Fiber Optic Gyroscope |
|---|---|---|---|
| Grade | Industrial | Applications | Aerospace, Defense, Navigation, Robotics |
| Customized Support | OEM, ODM | Communication | RS422 , Customizable |
| Highlight | RS422 IMU Inertial Measurement Unit,IMU Inertial Measurement Unit 60×60×70mm,Inertial Navigation System OEM |
||
Product Description
JT-I MU60A Inertial Measurement System
The JT-IMU60A fiber optic inertial measurement unit uses a three-axis fiber optic gyroscope (FOG) to sense the angular motion of the carrier and output a digital signal proportional to the angular velocity of the carrier. The configured MEMS accelerometer senses the linear acceleration of the carrier, providing the best cost-effective solution. Compared with other similar gyro technologies, the fiber optic gyroscope has significant advantages in life and stability.
|
Gyro Level |
standard |
A |
||
|
Range ( °/s ) |
±500 |
|||
|
Bias stability ( °/ h , 10s ) |
0.5 |
0.2 |
||
|
Zero bias repeatability ( °/ h , 10s ) |
0.5 |
0.2 |
||
|
Random walk ( °/√h) |
0.0 3 |
0.01 |
||
|
Startup time (s) |
≤ 5 |
|||
|
Magnetic shielding |
The optical fiber ring of key sensitive devices has magnetic shielding |
|||
|
Scale factor nonlinearity (ppm) |
≤ 100 |
≤ 50 |
||
|
Scale factor asymmetry (ppm) |
≤ 100 |
≤ 50 |
||
|
Scale factor repeatability (ppm) |
≤ 100 |
≤ 50 |
||
|
Acceleration measurement channel |
parameter |
|||
|
Range (g) |
±10 ( ±20 / ± 40 optional ) |
|||
|
Bias ( mg ) |
± 125 |
± 0.7 |
||
|
Bias repeatability ( mg ) |
|
1.2 |
||
|
Bias stability ( μg ) |
|
15 |
||
|
Scale Factor |
5 0000± 5 000 (LSB/g) |
270 ( mV/g ) |
||
|
Scale factor repeatability (ppm) |
|
≤ 400 |
||
|
Scale factor stability (ppm) |
|
≤ 12 0 |
||
|
Non-linearity (%FSR) |
0.1 |
0.3 |
||
|
Communication interface |
J30J-15 TJN-J(J30J-15ZKL) , customizable |
|||
|
Communication |
RS422 , customizable |
|||
|
Working voltage (V) |
±5V power supply |
|||
|
Dimensions (mm) |
60 × 60 × 70 |
|||
|
Weight (g) |
≤ 500 |
|||
|
Operating temperature |
-20 ℃ ~ + 60 ℃ |
|||
|
-40 ℃ ~ + 60 ℃ |
||||
|
Storage temperature |
-5 5 ℃ ~+8 5 ℃ |
|||
JT-IMU60A installation dimension drawing
