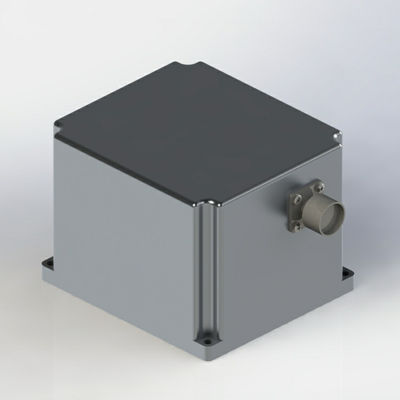

24V IMU Inertial Measurement Unit Customized Fiber Optic IMU 135×119×99 mm JT-I MU
| Place of Origin | china |
|---|---|
| Brand Name | JTZG |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Delivery Time | According to customer's requirement |
| Payment Terms | Negotiable |
| Supply Ability | Strong production capacity |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | IMU Inertial Measurement Unit | Technology | Fiber Optic Gyroscope |
|---|---|---|---|
| Grade | Industrial | Applications | Aerospace, Defense, Navigation, Robotics |
| Customized Support | OEM, ODM | Dimensions | 135×119×99 Mm |
| Highlight | 24V IMU Inertial Measurement Unit,IMU Inertial Measurement Unit Customized,Fiber Optic IMU 135×119×99 mm |
||
Product Description
JT-I MU 1 35 Inertial Measurement System
The JT-IMU135 fiber optic inertial measurement unit uses a three-axis fiber optic gyroscope (FOG) to sense the angular motion of the carrier and output a digital signal proportional to the angular velocity of the carrier; three orthogonally configured quartz flexible accelerometers sense the linear acceleration of the carrier, providing the best cost-effective solution. Compared with other similar gyro technologies, fiber optic gyroscopes have significant advantages in life and stability.
|
Gyro measurement channel |
parameter |
||
|
Range ( °/s ) |
±300 |
||
|
Bias stability ( °/ h,100s, 1σ ) |
0.01 |
0.02 |
|
|
Zero bias repeatability ( °/ h) |
0.01 |
0.02 |
|
|
Random walk ( /√h) |
0.001 |
0.002 |
|
|
Startup time (s) |
≤5 |
||
|
Magnetic shielding |
The optical fiber ring of key sensitive devices has magnetic shielding |
||
|
Scale factor nonlinearity (ppm) |
≤50 |
||
|
Scale factor asymmetry (ppm) |
≤50 |
||
|
Scale factor repeatability (ppm) |
≤50 |
||
|
Acceleration measurement channel |
parameter |
||
|
Range (g) |
±10 / ±20 / ± 40 optional |
||
|
Bias ( μg ) |
≤ 50 |
||
|
Bias stability ( μg ) |
≤20(4h) |
||
|
|
≤40 (3 months) |
||
|
Scale factor (^/s) |
5 0000± 5 000 |
||
|
Scale factor symmetry (ppm) |
≤20 |
||
|
Scale factor stability (ppm) |
≤ 5 0 |
||
|
Startup time |
10s normal output |
||
|
Mechanical and electrical interface |
|||
|
Communication interface |
J30J-15ZKP , J30J-25ZKP |
||
|
Communication |
RS422 , RS232 , customizable |
||
|
Operating voltage |
+24V |
||
|
Dimensions |
1 35 × 1 19 × 99 mm |
||
|
weight |
≤ 2.5 kg |
||
|
Operating temperature |
-20 ℃ ~ + 60 ℃ |
||
|
|
-40 ℃ ~+60 ℃ |
||
|
Storage temperature |
-5 5 ℃ ~+8 5 ℃ |
||
JT-IMU135 installation dimensions
