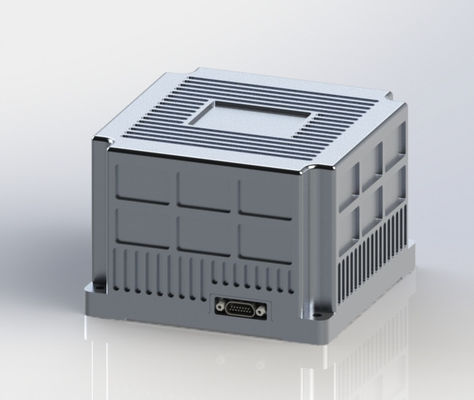

5V Fiber Optic Gyro IMU Rugged Inertial Measurement Sensor 112*112*77.5mm 112

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Fiber Optic Gyroscope | Technology | Fiber Optic Gyroscope |
---|---|---|---|
Grade | Industrial | Applications | Aerospace, Defense, Navigation, Robotics |
Customized Support | OEM, ODM | Dimensions | 112*112*77.5mm |
Highlight | 5V Fiber Optic Gyro IMU,Fiber Optic Gyro IMU Rugged,Inertial Measurement Sensor 112*112*77.5mm |
112 Fiber Optic Gyroscope
The 112 Fiber Optic Gyroscope is a state-of-the-art angular velocity sensor that combines cutting-edge technology with exceptional performance. Designed for precision and reliability, the 112 gyroscope offers wide measurement range, fast response, and high sensitivity, making it the ideal choice for applications that demand superior accuracy in dynamic environments.
Key features of the 112 Fiber Optic Gyroscope include:
-
Wide Measurement Range: Capable of measuring a broad spectrum of angular velocities, the 112 provides unparalleled versatility for a wide array of applications.
-
Fast Response and High Sensitivity: Designed to deliver rapid real-time data, this gyroscope ensures precise and highly sensitive measurements, even in fast-moving systems or environments where accuracy is critical.
-
Compact and Lightweight: With its small size and lightweight design, the 112 fiber optic gyroscope is perfect for integration into space-constrained systems without compromising on performance or durability.
-
Exceptional Precision: Offers high precision with minimal drift, ensuring consistent and reliable data for systems that require the highest level of accuracy.
-
Rugged and Reliable: Built to withstand extreme conditions, the 112 is resistant to shock, vibration, and temperature fluctuations, guaranteeing long-term performance and dependability.
-
Immunity to Electromagnetic Interference: The 112 fiber optic gyroscope is fully immune to electromagnetic influence, ensuring that it operates without disruption in environments with high electromagnetic noise or interference.
Whether used in aerospace, navigation systems, robotics, or military applications, the 112 Fiber Optic Gyroscope delivers outstanding performance, robustness, and precision, making it the perfect choice for your most demanding applications.
Gyro Level |
standard |
A |
Range ( |
±300 |
|
Bias stability ( |
< 0.2 |
< 0.1(Typical values 0.05) |
Zero bias repeatability ( |
< 0.2 |
< 0.1 |
Random walk coefficient ( |
< 0.02 |
< 0.01 |
Scale factor non-linearity ( ppm ) |
< 50 |
< 50 |
Scale factor asymmetry ( ppm ) |
< 50 |
< 50 |
Scale factor repeatability ( ppm ) |
< 50 |
< 50 |
Frequency bandwidth ( Hz ) |
≥100 |
|
Startup time ( s ) |
≤5 |
|
Magnetic shielding |
The optical fiber ring of key sensitive devices has magnetic shielding |
|
Power supply ( V ) |
5V power supply |
|
Power consumption ( W ) |
≤5 |
|
Dimensions ( mm ) |
112*112*77.5 |
|
Weight ( g ) |
1100±10 |
|
Output method |
RS-422 |
|
Operating temperature (°C) |
-40 ℃ ~+60 ℃ |
|
Storage temperature (℃) |
-55 ℃ ~+85 ℃ |
|
Communication interface |
DB9 , J30J-15-TJ , customizable |
