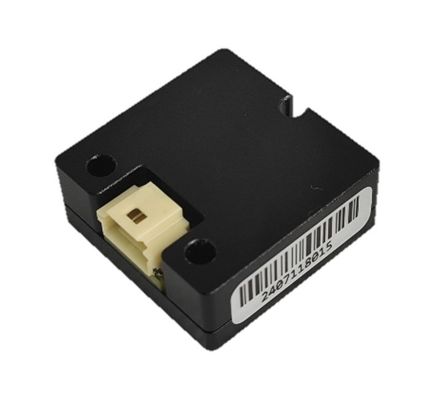

200Hz MEMS Inertial Measurement Unit 22.4*22.4*9mm MEMS IMU Sensor 6 Axis JTZG300
| Place of Origin | china |
|---|---|
| Brand Name | JTZG |
| Model Number | JTZG300 |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Delivery Time | According to customer's requirement |
| Payment Terms | Negotiable |
| Supply Ability | Strong production capacity |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | MEMS Inertial Measurement Unit | Grade | Industrial |
|---|---|---|---|
| Applications | Aerospace, Defense, Navigation, Robotics | Customized Support | OEM, ODM |
| Small Size | 22.4 * 22.4 * 9 Mm | Light Weight | <10g |
| Highlight | 200Hz MEMS Inertial Measurement Unit,MEMS Inertial Measurement Unit 22.4*22.4*9mm,MEMS IMU Sensor 6 axis |
||
Product Description
JTZG300 High Performance Inertial Measurement Unit
The JTZG300 high-performance inertial measurement unit is a durable industrial inertial navigation system with 6-axis output, acceleration, angular velocity output frequency of 200Hz. JTZG300 uses MEMS-based accelerometers and gyroscopes to provide customers with super cost-effective solutions.
The JTZG300 inertial measurement unit is small in size and light in weight. It uses an ultra-durable and compact aluminum alloy shell and has high reliability in harsh environments. It has been widely used in dynamic control systems and attitude systems such as drones and ROVs, drones, smart agriculture, mechanical control, platform stability, AGV, robots and other fields.
Key Features:
Precision calibrated 6-axis inertial system
3-axis gyro and 3-axis accelerometer output
Data output rate: 200Hz (max 1000Hz)
Range: gyro ±500 °/s, accelerometer ±16g
Bias instability: gyro 2°/h, accelerometer 20μg
Small size: 22.4 * 22.4 * 9 mm
Light weight: <10g
Wide temperature range: -40ºC ~ +85ºC
High-reliability product design, scientific and effective product development, professional and complete production equipment, strict quality control production process, and delivery of better quality products to users
Many years of industry experience, over a thousand industry user cases
Industry-leading compensation calibration technology, efficient and fast professional technical response
Provide users with more satisfactory services
Specifications:
|
Indicator |
index |
Remark |
|
|
Gyro |
Acc |
||
|
IMU Accuracy |
|||
|
Range : X, Y, Z |
±500°/s |
±16g |
|
|
Bias instability |
2°/h |
20 μg |
Allan |
|
Random Walk |
0.15°/√h |
0.025m/s/ √h |
|
|
Bias stability |
10°/h |
/ |
10s average ( 25℃ , normal temperature) |
|
Scale factor nonlinearity |
100ppm |
100ppm |
±1g |
|
Cross coupling |
100ppm |
100ppm |
|
|
bandwidth |
200Hz |
|
|
|
Update rate |
200Hz |
Max 1000Hz |
|
|
Electrical characteristics |
|||
|
Operating voltage |
5 VDC |
|
|
|
Power consumption |
0.5 W |
|
|
|
interface |
LVTTL |
115200 ~ 921600 bps Configurable |
|
|
Structural features |
|||
|
size |
22.4 * 22.4 * 9 mm |
|
|
|
weight |
< 10g |
|
|
|
Environmental reliability |
|||
|
Operating temperature |
-40°C ~ +80°C |
|
|
|
Storage temperature |
-40°C ~ +85°C |
|
|
|
Random Vibration |
6.06g ( 20-2000Hz ) |
|
|
|
Shock |
1000g / 0.5ms |
|
|
