400Hz MEMS Inertial Measurement Unit 5V Small Inertial Measurement Unit Lightweight JTZG600
| Place of Origin | china |
|---|---|
| Brand Name | JTZG |
| Model Number | JTZG600 |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Delivery Time | According to customer's requirement |
| Payment Terms | Negotiable |
| Supply Ability | Strong production capacity |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | MEMS Inertial Measurement Unit | Grade | Industrial |
|---|---|---|---|
| Applications | Aerospace, Defense, Navigation, Robotics | Customized Support | OEM, ODM |
| Power Supply Range | 5V DC | High Bandwidth | 400Hz |
| Highlight | 400Hz MEMS Inertial Measurement Unit,MEMS Inertial Measurement Unit 5V,Small Inertial Measurement Unit Lightweight |
||
Product Description

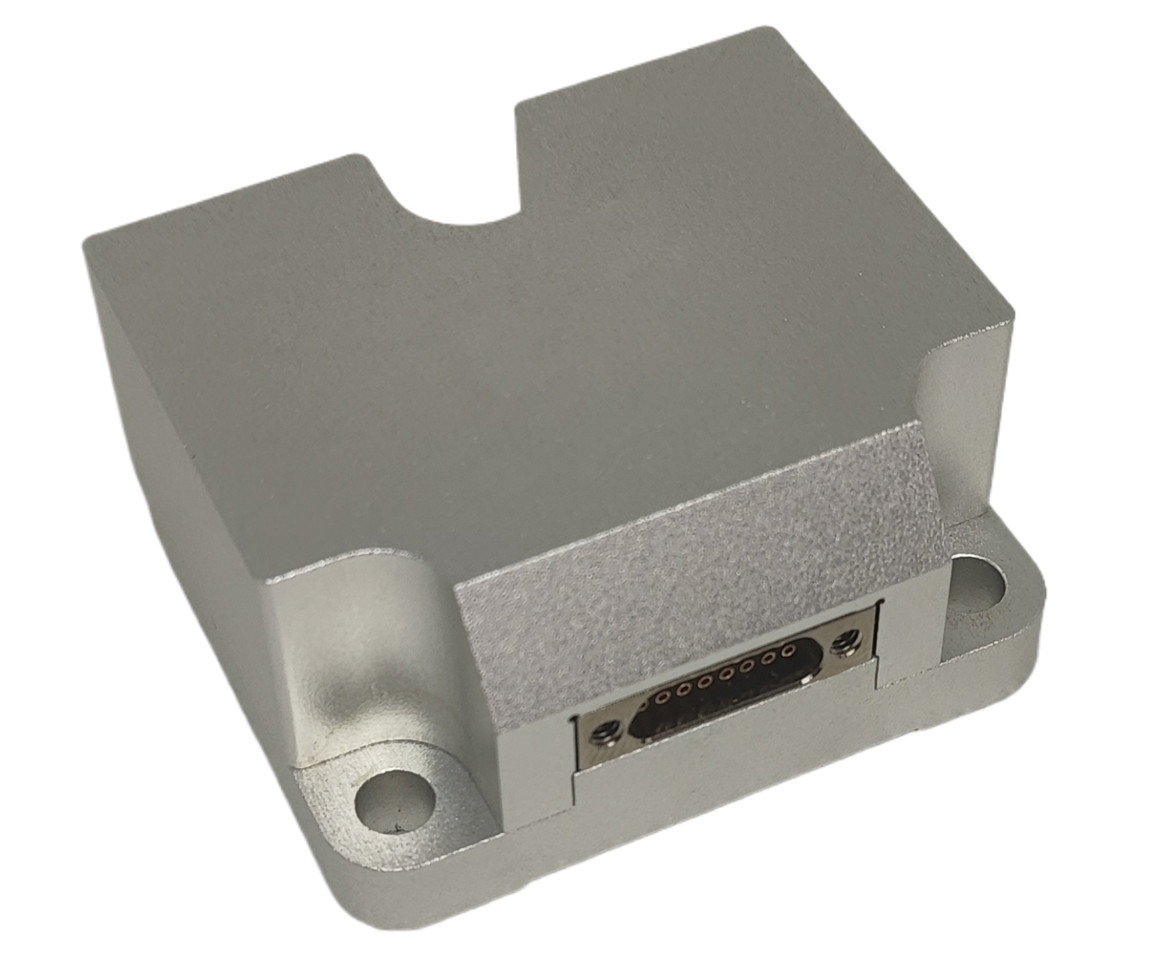

JTZG600 IMU Is An Inertial Measurement Unit
JTZG600 IMU is an inertial measurement unit ( IMU ) based on micromechanical technology ( MEMS ) . It has a built-in high-performance three-axis MEMS gyroscope and a three-axis MEMS accelerometer, and supports the output of angular velocity, acceleration, attitude angle and other information. JTZG600 has high reliability and strong environmental adaptability. It has passed the most stringent tests and has excellent performance in noise, zero bias stability, nonlinearity, temperature drift, etc. The product can be widely used in intelligent driving, engineering, civil and special UAVs, AGV , railways, mobile communications, personnel navigation and other fields.
Key Features:
Three-axis gyroscope, range ±450°/s
Three-axis accelerometer, range ±20g
High bandwidth : 400Hz
Temperature compensation range : −40°C to +85°C
Communication interface : RS422
Power supply range : 5V DC
Shock resistance : 1450 g / 0.5 ms
Small size and light weight
High reliability product design, scientific and effective product development Professional and complete production equipment, strict quality control production process Deliver better products to users .Many years of industry application experience and practical cases of over a thousand industry users Industry-leading compensation calibration technology, efficient and fast professional technical response Provide users with more satisfactory services
Specifications:
|
Indicator |
index |
Remark |
|
|
Gyro |
Acc |
||
|
IMU Accuracy |
|||
|
Range : X, Y, Z |
±450 °/s |
±20g |
|
|
Bias instability |
1°/h |
20 μg |
Allan variance |
|
Random Walk |
0.065°/√h |
0.02m/s/ √h |
|
|
Bias stability |
3°/h |
0.4mg |
10s average ( 25℃ normal temperature) |
|
Scale factor nonlinearity |
100ppm |
100ppm |
Acc range ±1 g |
|
Cross coupling |
100ppm |
100ppm |
|
|
bandwidth |
400Hz |
|
|
|
Update rate |
200Hz |
Max 1000Hz |
|
|
Electrical characteristics |
|||
|
Operating voltage |
5V DC |
|
|
|
Power consumption |
0.5W |
|
|
|
interface |
RS422 |
115200 ~ 921600 bps Configurable |
|
|
Structural features |
|||
|
size |
38.6 * 44.8 * 21.5mm |
|
|
|
weight |
120g |
|
|
|
Environmental reliability |
|||
|
Operating temperature |
-40°C~ +85°C |
|
|
|
Storage temperature |
-45°C~ +105°C |
|
|
|
Random Vibration |
6.06g ( 20-2000Hz ) |
|
|
|
Shock |
1450g / 0.5ms |
|
|
