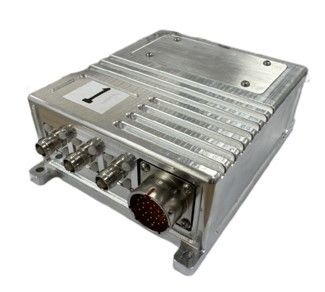

98*94*31mm MEMS Inertial Measurement Unit 9 VDC - 36 VDC IMU System MS 5122P
| Place of Origin | china |
|---|---|
| Brand Name | JTZG |
| Model Number | MS- 5122P |
| Minimum Order Quantity | negotiable |
| Price | negotiable |
| Delivery Time | According to customer's requirement |
| Payment Terms | Negotiable |
| Supply Ability | Strong production capacity |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | MEMS Inertial Measurement Unit | Grade | Industrial |
|---|---|---|---|
| Applications | Aerospace, Defense, Navigation, Robotics | Customized Support | OEM, ODM |
| Highlight | 98*94*31mm MEMS Inertial Measurement Unit,MEMS Inertial Measurement Unit 9 VDC,36 VDC IMU System |
||
Product Description
MS- 5122P High-Precision MEMS Integrated Navigation System
MS- 5122P is a high-precision MEMS integrated navigation system with built-in self-developed high-precision MEMS IMU (inertial measurement unit) and self-developed high-precision dual-antenna GNSS module. It adopts multi-source Kalman filter fusion algorithm and can provide continuous and reliable high-precision positioning and navigation information in complex environments. Supports BDS, GPS, GLONASS, Galileo and QZSS full system multi-frequency points, and supports Beidou three satellite systems .
Key Features:
All IMUs are factory-calibrated for temperature and dynamic calibration Adaptive static/dynamic alignment The horizontal position accuracy of the unlocked state can reach within 0.2%×D RS-232, CAN, USB and other interfaces are optional Built-in 4G communication module 9~36VDC wide voltage power supply
High reliability product design, scientific and effective product development Professional and complete production equipment, strict quality control production process Deliver better products to users
Many years of industry application experience and practical cases of over a thousand industry users Industry-leading compensation calibration technology, efficient and fast professional technical response Provide users with more satisfactory services
Specifications
|
Indicator |
Specifications (typical values) |
Remark |
|
|
Startup time |
Integrated navigation alignment time |
<60s |
Dual antenna, wide |
|
|
|||
|
Including GNSS cold start 25s , RTK initialization 5s |
|||
|
Satellite signal tracking capability |
Frequency |
BDS B1I/B2I/B3I , GPS L1/L2/L5 |
|
|
|
|||
|
GLONASS L1/L2 , GALILEO E1//E5a/E5b |
|||
|
Heading accuracy |
GNSS effective |
0.1° |
Dual antenna 2m baseline, single antenna requires dynamic alignment |
|
Maintaining accuracy |
0.15°/min |
GNSS failure |
|
|
Attitude accuracy |
GNSS effective |
0.1° |
RTK/ single point dual frequency |
|
Maintaining accuracy |
0.1° |
GNSS failure within 5 minutes |
|
|
Horizontal positioning accuracy |
GNSS effective |
1.2m |
Single point dual frequency |
|
1 cm + 1ppm |
RTK |
||
|
Maintaining accuracy |
0.1% * D |
GNSS failed, connected to odometer, 60km/h , 120s |
|
|
Horizontal speed accuracy |
GNSS effective |
0.03m/s |
|
|
Timing accuracy |
GNSS effective |
20ns |
|
|
Gyroscope |
Measuring range |
±500 °/s |
|
|
Bias instability |
2°/h |
Allan variance |
|
|
Scale factor nonlinearity |
200ppm |
|
|
|
Accelerometer |
Measuring range |
±8g |
|
|
Bias instability |
0.02mg |
10s average ( 25℃ ) |
|
|
Scale factor nonlinearity |
200ppm |
±1 g |
|
|
Data update rate |
GNSS data results |
10Hz |
Positioning / speed / heading / raw data information |
|
IMU Raw Data |
200Hz |
Default 100Hz |
|
|
Combined navigation solution results |
200Hz |
Default 100Hz |
|
|
Electrical Characteristics |
Communication interface |
RS-232 * 4 , PPS * 1 , Event * 1 , CAN * 2 , 100M Ethernet |
4- channel 232 , 2- channel direct connection GNSS board |
|
Voltage |
9 ~ 36VDC |
|
|
|
Power consumption |
≤ 6W |
|
|
|
Structural characteristics |
size |
98*94*31 mm |
Including mounting holes and connectors <98*102*31 mm |
|
weight |
≤ 310g |
|
|
|
Usage Environment |
Operating temperature |
-40℃ ~ +75℃ |
|
|
Storage temperature |
-55℃ ~ +85℃ |
|
|
|
vibration |
6.06g ( 20~2000 Hz ) |
|
|
|
Shock |
40g / 11ms |
|
|
